SEPA KOREA

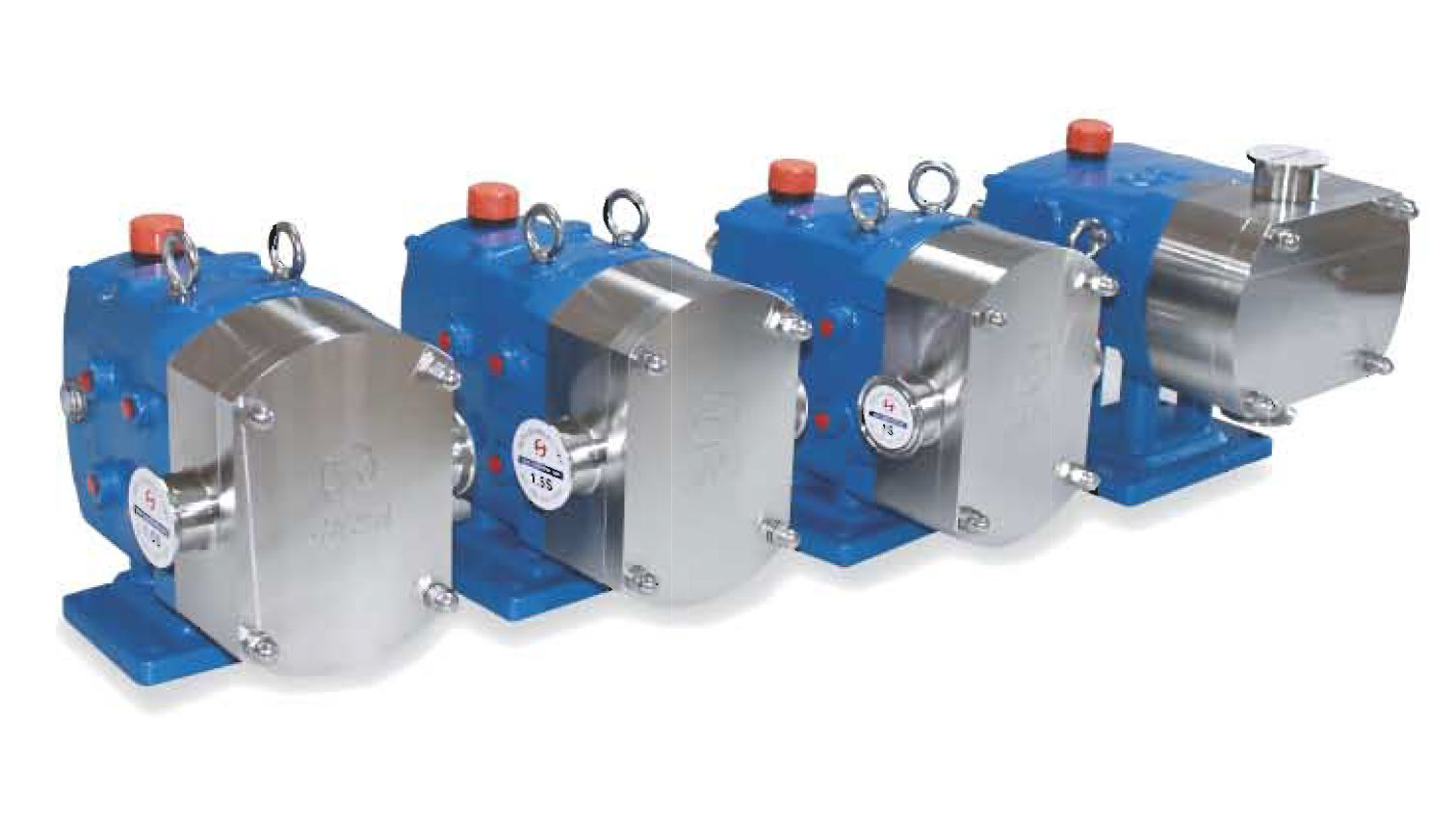

ROTARY LOBE PUMP
APPLICATIONS
- Bakery
- Beverage
- Canning
- Cosmetics
- Pharmaceutical
- Dairy
- Meat Packing
FEATURES
- Quantitative Transfer
- Simple Construction & Easy Maintenance
- Rotation Reversible
- Low Noise & Vibration
- Corrsion Resistant Material ( SUS316/316L )
- M/Seal : Single & Double ( TC/TC, Sic/Sic )
- Applicable Fluid: Water, Beverage, Milk, Sauce, Pharmaceutical Liquid, Juice, Alcohol, etc.
CONNECTIONS
- IDF Male
- ISO Clamp
- 3A
- SMS
- DIN
- Flange

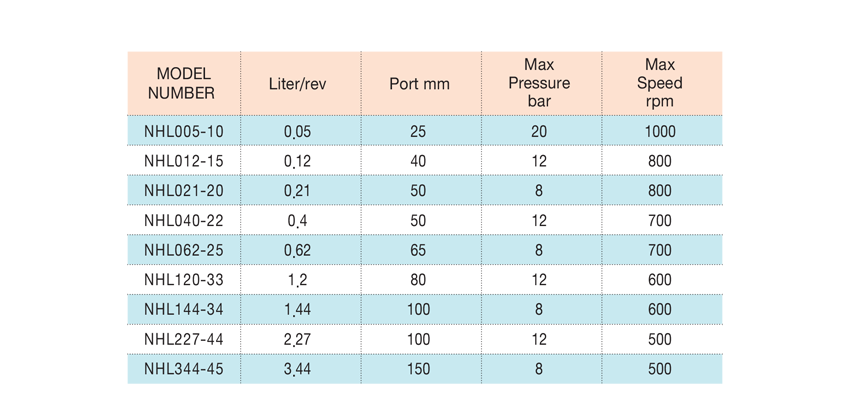

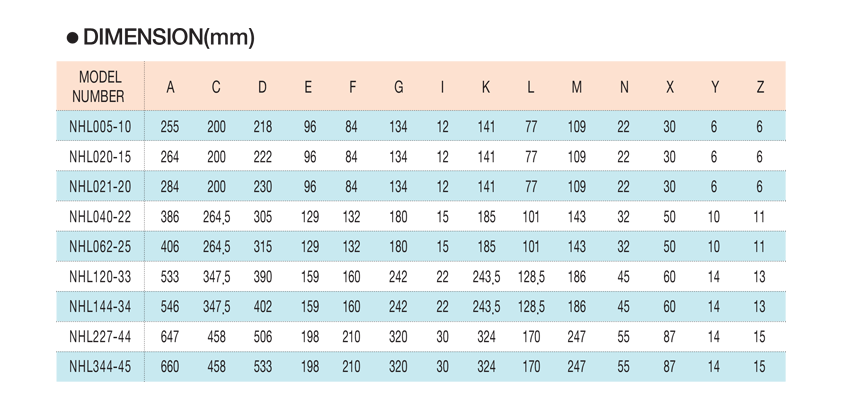

NAHOOENG NHL ROTARY LOBE PUMP
The NAHOOENG ” NHL “ positive displacement pump handles products gently and efficiently and is completely CIP’ able.
NAHOOENG “NHL” series pumps use a proven design to provide gentle product handling, easy maintenance, complete clean-ability, and high efficiency.
STANDARD DESIGN
- Cast Iron Gear Case
- Single mechanical seal(TC vs TC)
- 316L stainless steel pump construction
- Tri-clamp connection
- Bi-wing rotors
- 32RA(0.8μm) finish

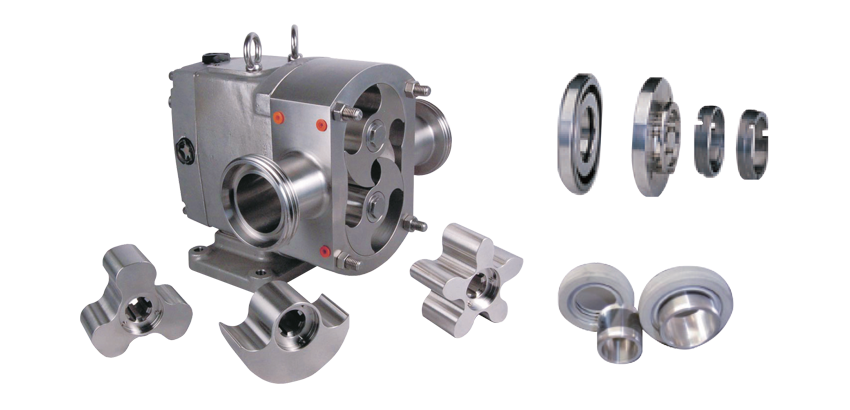

OPTIONAL DESIGN FEATURES
- Stainless steel 304
- Double mechanical seal
- O-ring seal
- Double O-ring seal
- Triple Lip seal
- Mechanical seal with seal flush
- IDF male, SMS, DIN and Flange
- Single, Tri-lobe, and multi-lobe rotors
- Heating and cooling jackets
- Relief cover
- 16RA(0.4μm) finish
AVAILABLE OPTIONS
- Jacket pump
The thermal jacket is fitted to the front cover and casing during the
transfer of products that require temperature control,such as sugar, chocolate, concierge and beer enzymes, to help control the temperature of the product.
- Rectangular Inlet
Unlike the standard specification of round suction, the square suction is designed to allow more efficient inhalation of high viscose products or solids.
- Pressure Relief valve
When the pressure inside the pump casing is above the set pressure,
the valve automatically opens to protect the system from abnormal high pressure.
